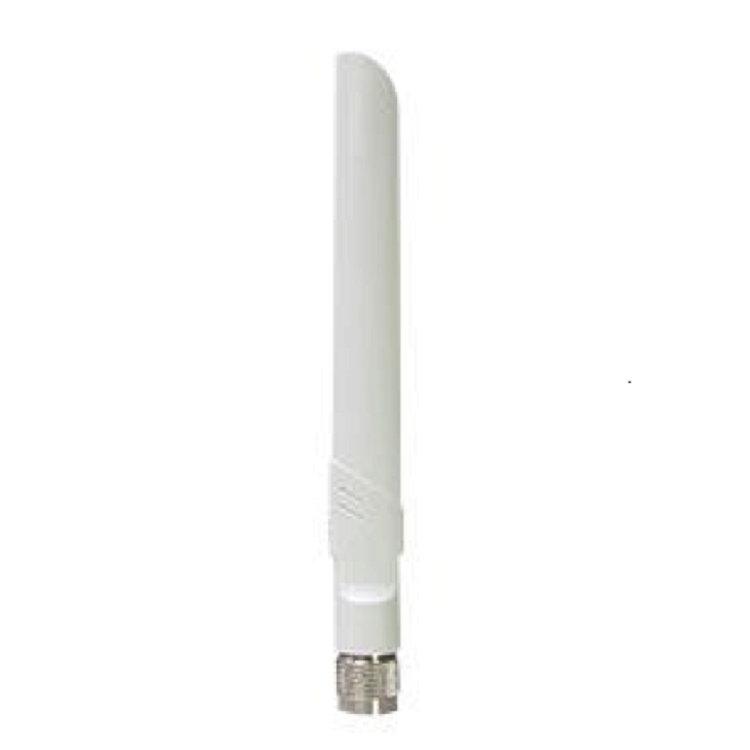

QT-Q24F6

2.4 GHz omni directional wifi-wireless antennas for both consumer and commercial grade WiFi networks. Omni WiFi antennas, broadcast / propagate a full 360 degree radiation pattern, completely surrounding and saturating the radio signal in all directions outwards from the center of the antenna.
Omni WiFi antennas are generally used in public WiFi applications, farms and ranches, public parks, zoos and recreation centers, along with most RV Parks and Marinas.
An omni directional WiFi antenna, generally connects to an access point or router, via coaxial cable, or direct to the outdoor access point.

Electrical:
Frequency Range Band width:  2400-2483MHz

Band width: 83MHz
Gain:  6dbBi
Radiation:  omni direction
Horizontal Beam width: 360°

Vertical Beam width: 7°

V.S.W.R:<=1.5
Polarization: vertical
Lightning Protection: DC grounded
Maximum Input Power: 50W
Impedance： 50Ώ
Connector：N Female
Antenna Radome Material: PVC

Mechanical
Antenna Dimension: Φ20x200mm
Weight: 350g
Operating Temperature: -40°C to+80°C

Rated Wind Velocity: 60m/s
RoHS Compliant: Yes
