Backhual PTP

Our company unleashes its highest capacity, license-free PTP device with the release of the  PTP series product line. Making use of ground breaking 2x2 MiMo technology, the  PTP 5-23/5-N delivers real aggregate throughput capability of up to 700 Mbps (350 Mbps full-duplex) combined with high packets per second performance. Our proprietary W-Jet V protocol, specifically engineered for high performing PTP scenarios, minimizes interferences even across long distances and stabilizes latency within 2-4 ms

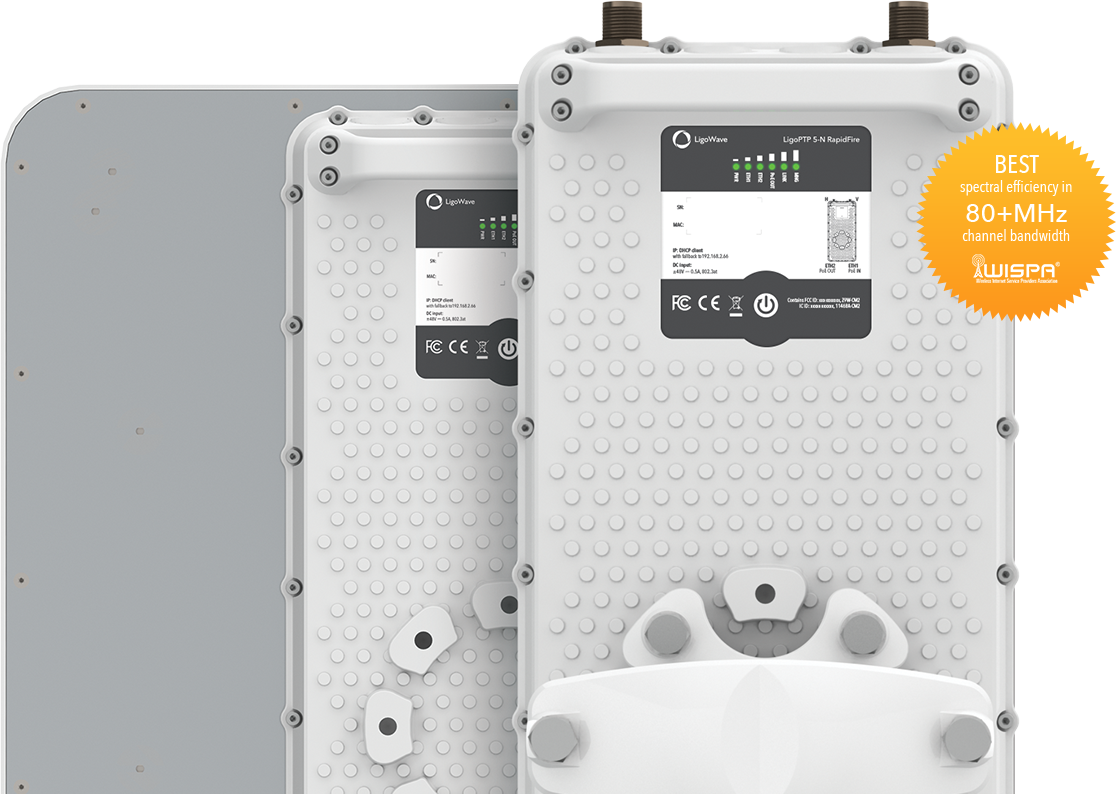

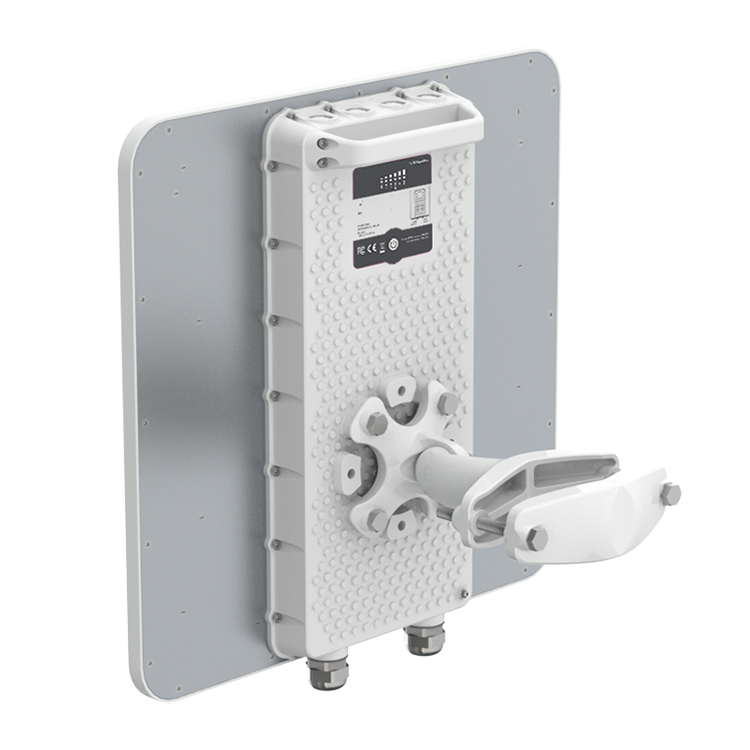

In addition to achieving maximum performance,Our partner focuses on delivering flexibility and ease-of-use in our RapidFire series. The robust mounting bracket enables rapid deployment of the links and ensures survivability during high wind-load. The integrated antenna possesses a 45° rotation option which increases installation flexibility; especially advantageous in noisy spectrum areas. A GORE© membrane vent allows fast pressure equalization of the IP-67 rated cast aluminum enclosure to prevent condensation and to ensure seal performance . A detachable handle eases transporting the devices up towers and over rough terrains. Newly designed RGB LEDs indicate different device statuses and signal levels (in 1dBm steps) when aligning the antenna.
Additionally, the new product is compatible with previous  PTP 5-23 /5-N MiMo models. This product enables carrier-class point-to-point capability, ideal for dedicated access or backhaul applications (including VOIP or other small packet applications). The  PTP PRO product family couples flexible channel width capability (20 , 40 ,80MHz) and industry-leading proprietary software mechanisms to set the utmost standard in spectral efficiency.

Others:
Antenna Type : directional dual-pol panel
Antenna Gain : 23dBi
Transmit Power : 30 dBm
Cover Radius : 20 Km

major Features：
●750 Mbps directional dual-pol 23dBi panel .
●Support 802.11ac W-Jet V, MIMO2x2 wireless architecture;
● Frenquency：5.150 - 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz)
● Channel size：Configurable 5,10,20, 40,80 MHz
●Working mode：Bridge, router iPv4, router IPv6；
● Beamwidth : H pol: 16deg, V pol: 16deg, Elevation: 16deg
