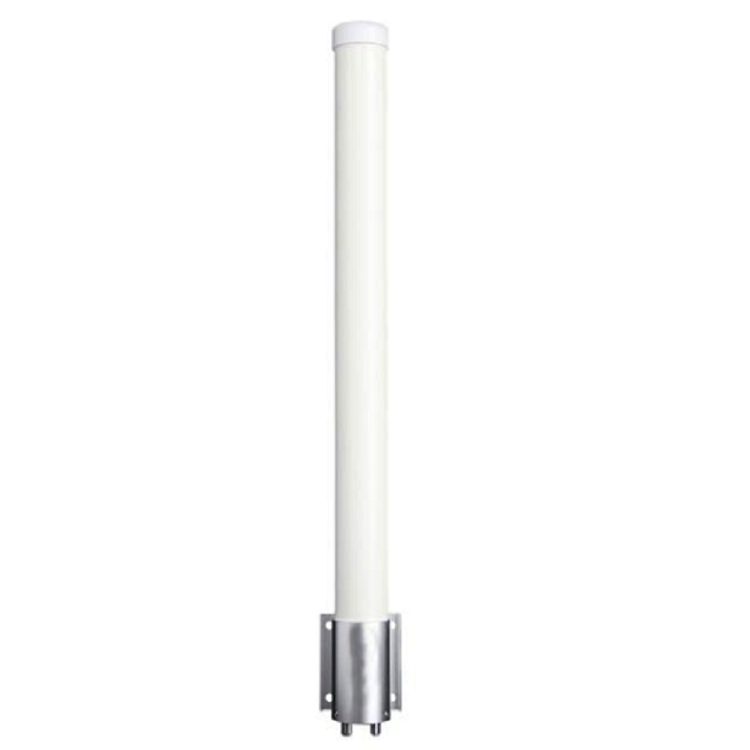

QT-Q24F12X2DP

Dual Polarized high gain omnidirectional base station antenna optimized for 2.4 GHz frequencies.
This antenna is ideally suited for multipoint applications where long range and wide coverage is desired. It is actually one antennas have 2 connector,horizontal polarized and vertical polarized for both ports. Rugged and Weatherproof.

Electrical:
Frequency Range Band width:  2400-2483MHz

Band width: 83MHz
Gain: 2x 12dbBi
Radiation:  omni direction
Horizontal Beam width: 360°

Vertical Beam width: 7°

V.S.W.R:<1.5:1,Max2.0
Polarization: Horizontal and vertical
Lightning Protection: DC grounded
Maximum Input Power: 100W
Impedance： 50Ώ
Connector：2xN Female
Antenna Radome Material: PVC

Mount way: Pole
Diameter of Installation Pole: Φ30-50mm

Mechanical
Antenna Dimension: Φ75x1250mm
Weight: 2.2Kg
Operating Temperature: -40°C to+80°C

Rated Wind Velocity: 60m/s
RoHS Compliant: Yes
