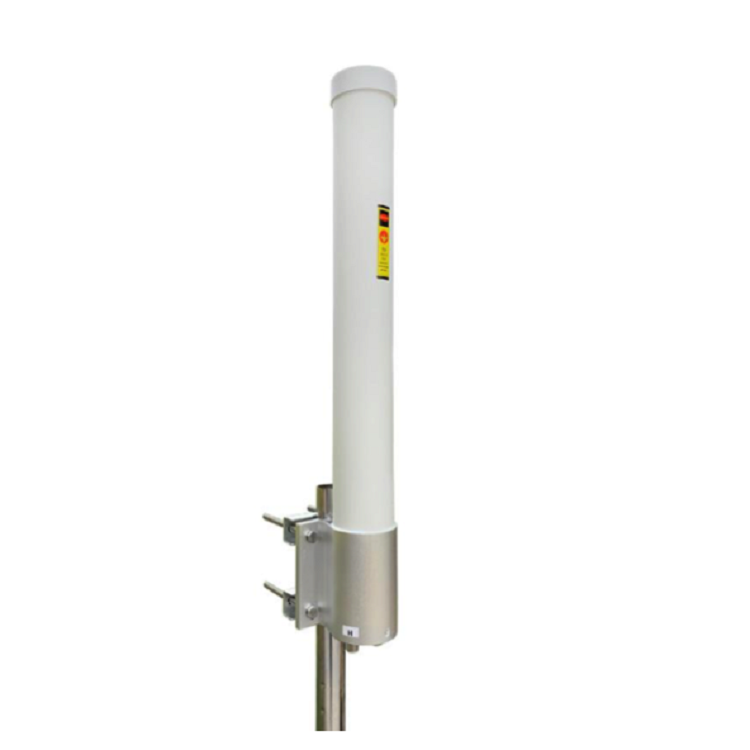

QT-Q58F13X2DP

Dual Polarized high gain omnidirectional base station antenna optimized for 5 GHz frequencie.
This antenna is ideally suited for multipoint applications where long range and wide coverage is desired. It is actually one antennas have 2 connector,horizontal polarized and vertical polarized for both ports. Rugged and Weatherproof.

Electrical:
Frequency Range Band width:  5150-5850MHz
Gain:  2x13dBi
Radiation:  omni direction
Horizontal Beam width: 360°

Vertical Beam width: 7°

V.S.W.R:<2.0
Polarization: horizontal and vertical
Lightning Protection: DC grounded
Maximum Input Power: 100W
Impedance： 50Ώ
Connector：2xN Female
Antenna Radome Material: PVC

Mount way: Pole
Diameter of Installation Pole: Φ30-50mm

Mechanical
Antenna Dimension: Φ75x620mm
Weight: 1.67kg
Operating Temperature: -40°C to+70°C

Rated Wind Velocity: 60m/s
RoHS Compliant: Yes
