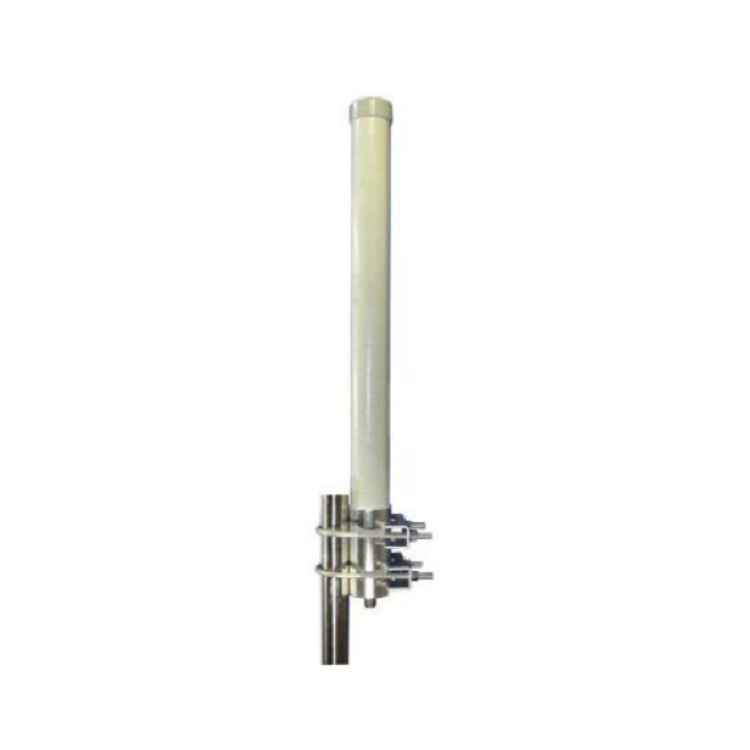

QT-Q5158F15

5.1GHz-5.9GHz Applications WiMAX,CDMA 802.11a WiFi Networks Frequency Ultra-wide Wireless Lan Systems Public Wireless Hotspot 802.16WiMax Networks Directional and multipoint applications Superior Performance Good appearance designs,Outdoor antenna for public Hot spots Installed for vertical or horizontal polarization Heavy Duty mounting.
The Weight is light 。RoHS Compliant.

Electrical:
Frequency Range Band width:  5150-5850MHz
Gain:  15dbBi
Radiation:  omni direction
Horizontal Beam width: 360°

Vertical Beam width: 7°

V.S.W.R:<=1.5
Polarization: vertical
Lightning Protection: DC grounded
Maximum Input Power: 100W
Impedance： 50Ώ
Connector：N Female
Antenna Radome Material: Fiber glass

Mount way: Pole

Diameter of Installation Pole: Φ30-50mm

Mechanical
Antenna Dimension: Φ20x750mm
Weight: 1.31Kg
Operating Temperature: -40°C to+70°C

Rated Wind Velocity: 60m/s
RoHS Compliant: Yes
