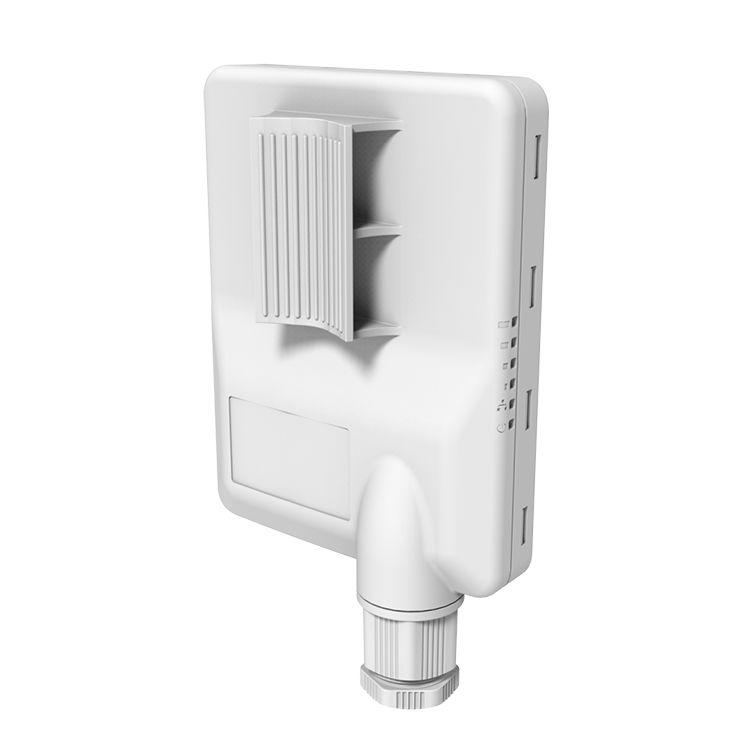

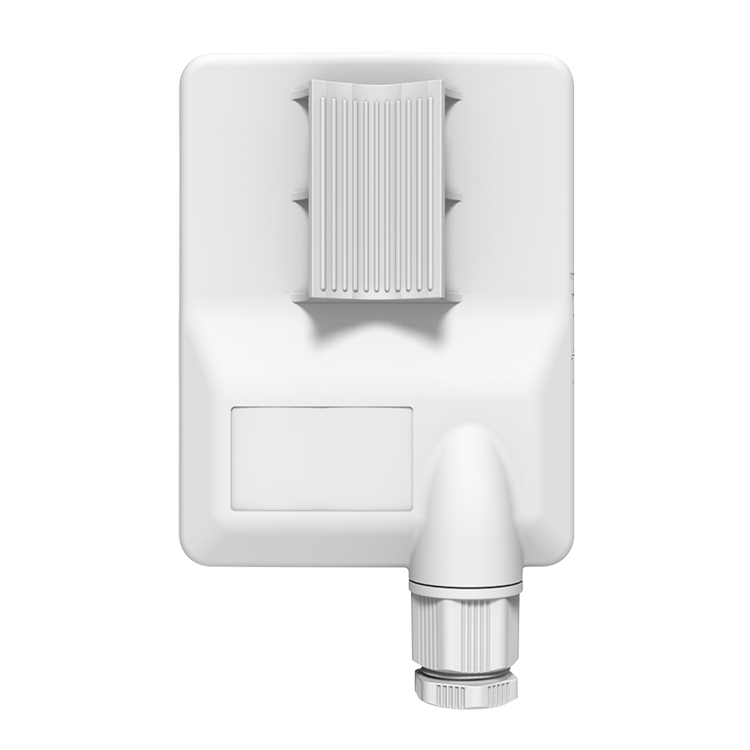

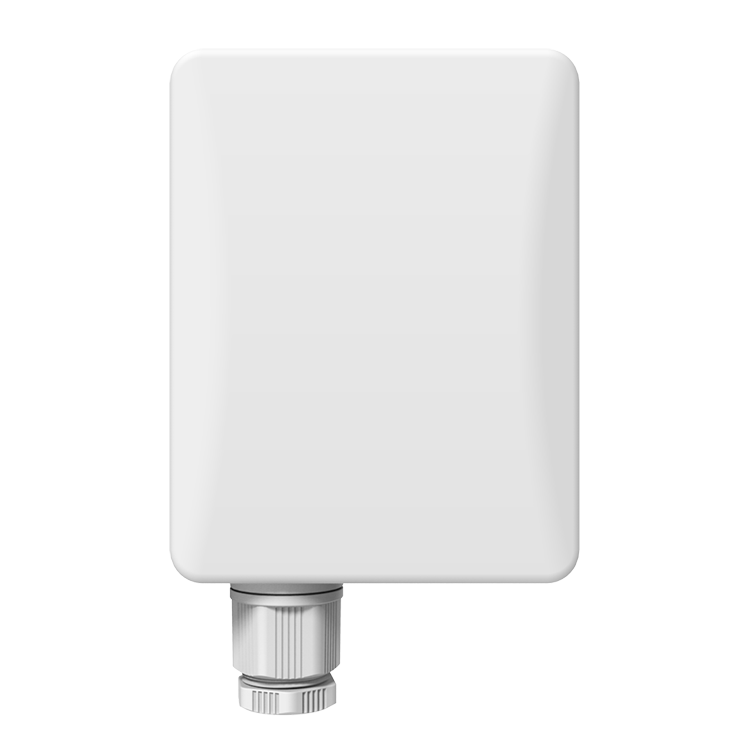

5-15ac

500+ Mbps thruoghput - a result of powerful hardware platform with 802.11ac technology based radio and a proprietary data transmission protocol (iPoll). Based on a QCA 9563 CPU (750 MHz), QCA 9882 radio and 64 MBytes of RAM and 16 MBytes of flash memory the, 5-15 ac series devices are an ideal solution for capacity demanding applications. State of the art RF design with great output power and sensitivity parameters improve range and capacity over highest modulation - 256 QAM. The 24V Gigabit Ethernet port (passive PoE) allows utilizing the full capacity of the radio when using in a point-to-point and point-to-multipoint scenario.  ac series devices are backwards compatible with URwave devices using iPoll mode, which helps to expand or upgrade existing networks using the latest technologies gradually.

Others:
Antenna Type : directional dual-pol panel
Antenna Gain : 15 dBi
Transmit Power : 30 dBm
Cover Radius : 1~3 Km

major Features：
●750 Mbps directional dual-pol 23dBi panel .
●Support 802.11ac W-Jet V, MIMO2x2 wireless architecture;
● Frenquency：5.150 - 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz)
● Channel size：Configurable 5,10,20, 40,80 MHz
●Working mode: Bridge, router iPv4, router IPv6；
● Beamwidth : H pol: 35 deg, V pol: 35 deg, Elevation: 35deg
