5-90ac

500+ Mbps throughput - a result of powerful hardware platform with 802.11ac technology based radio and a proprietary data transmission protocol (iPoll 3). Incorporating a QCA 9563 CPU (750MHz), a QCA 9882 radio and 64MBytes of RAM and 16 MBytes of flash memory the, URwave ac series devices are an ideal solution for capacity demanding applications. State of the art RF design with great output power and sensitivity parameters improve range and capacity over the highest modulation—256-QAM. The 24V Gigabit Ethernet port (passive PoE) allows utilizing the full capacity of the radio when used in a point-to-multipoint network design.  ac series devices are backwards compatible with URwave devices using iPoll mode, which helps to expand or upgrade existing networks using the latest technologies over time.

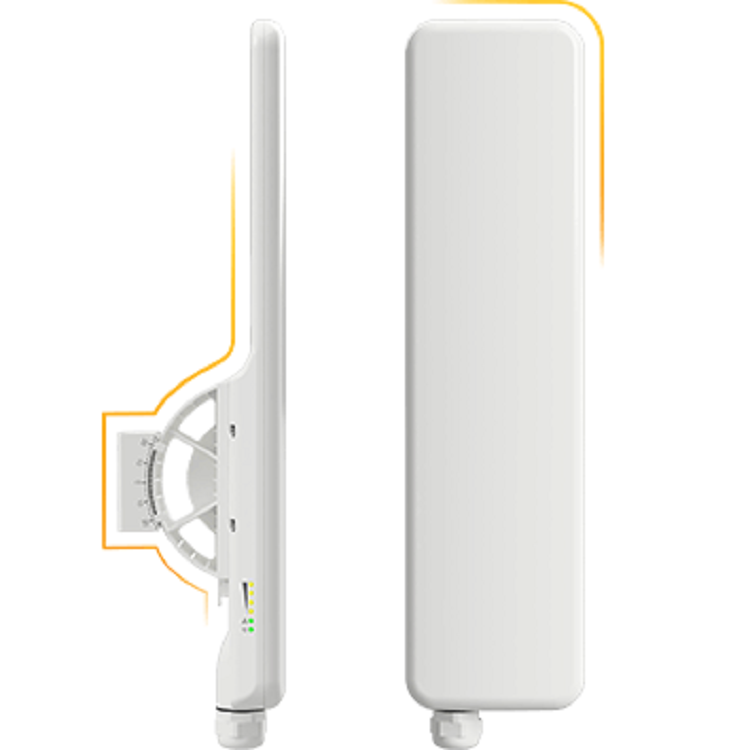

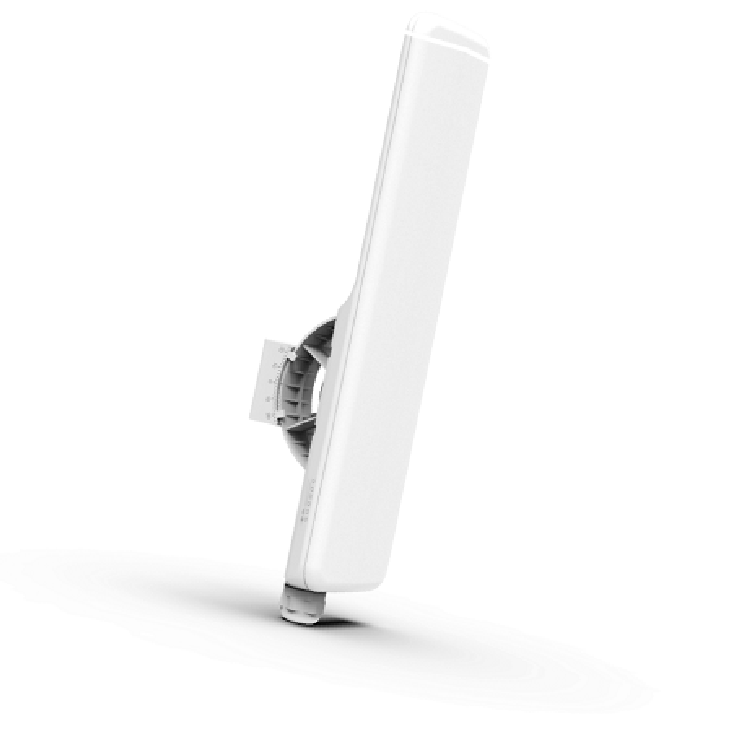

The shape of the enclosure is now smaller, lighter and retains the IP-66 weather protection rating. Smaller packaging reduces freight costs and makes them less obvious. The new URwave  5-90ac design has no metal parts, which makes them lighter and corrosion resistant.

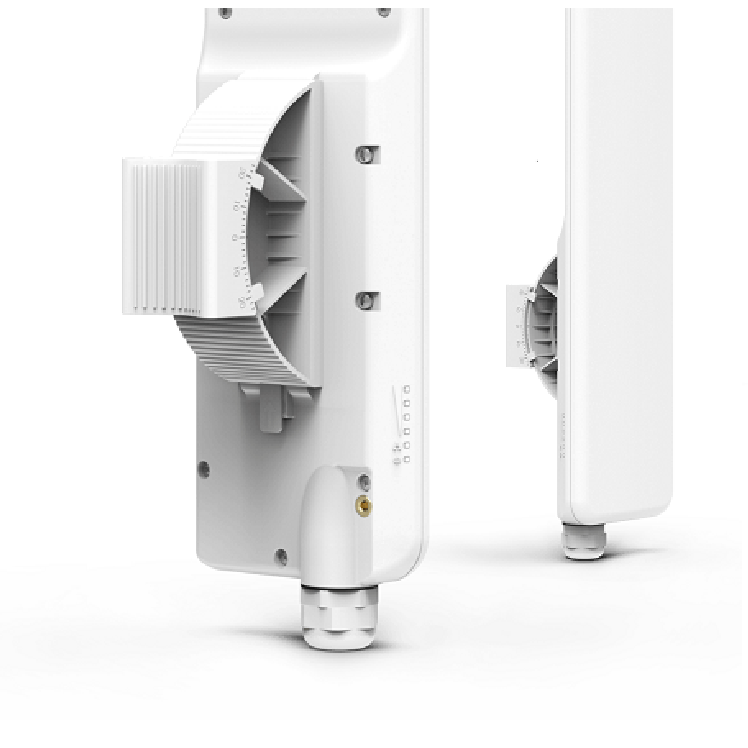

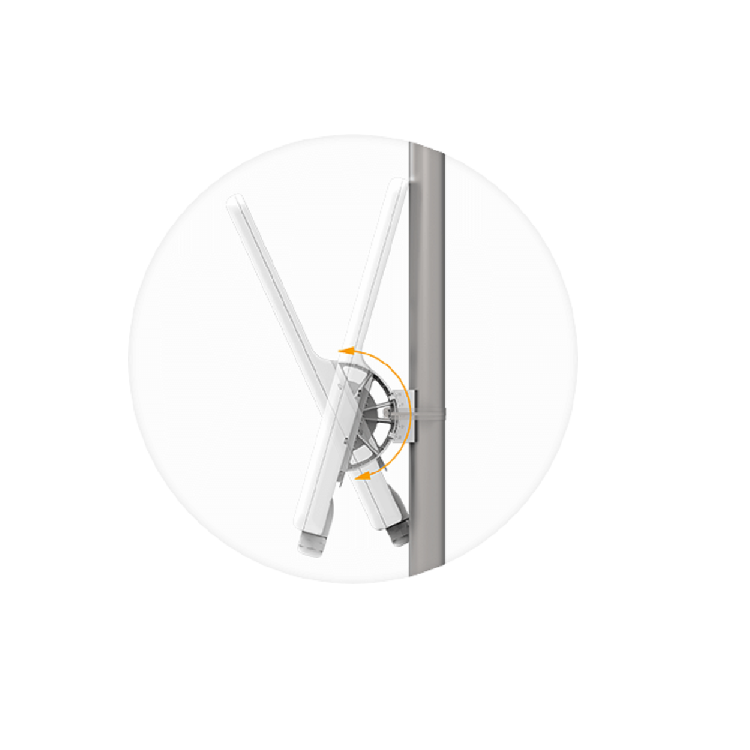

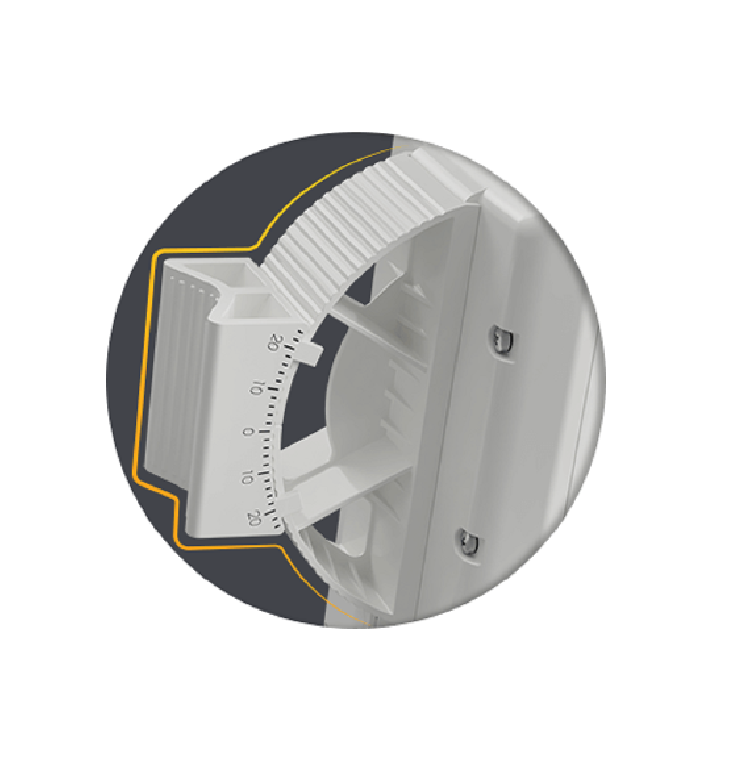

The adjustable mounting bracket is very easy to assemble and install. It consists of two easy to connect parts that allow tilting the device up and down when installing on a pole. A metal strap is included to securely tighten the device. This design includes additional reinforcements and thicker materials to ensure survival in extreme climate conditions.

Others:
Antenna Type : directional dual-pol panel
Antenna Gain : 18 dBi
Transmit Power : 30 dBm
Cover Radius : 3~6 Km

major Features：
●750 Mbps directional dual-pol 23dBi panel .
●Support 802.11ac W-Jet V, MIMO2x2 wireless architecture;
● Frenquency：5.150 - 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz)
● Channel size：configurable 5,10,20, 40,80 MHz
●Working mode：Bridge, router iPv4, router IPv6；
● Beamwidth : H pol: 90 deg, V pol: 90 deg, Elevation: 20deg
