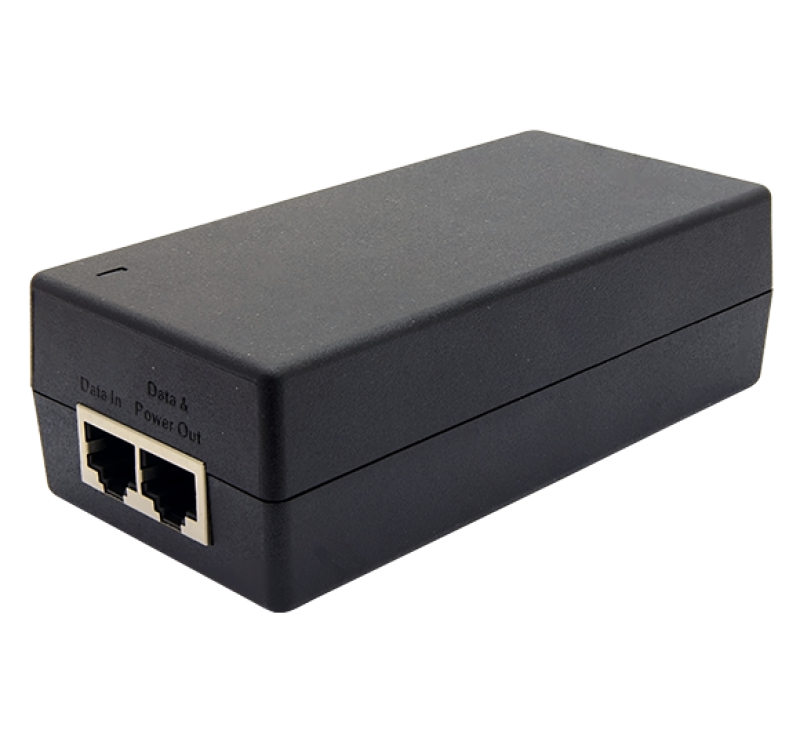

PoE Power

The adapter is a  power passive PoE

Electrical specifications

Input voltage 100 – 240 VAC, 50/60 Hz
Output voltage 48 VDC +/- 5%
Output power   24 W
Output PoE type 802.3af/at on 1,2,4,5(+) and 3,6,7,8(-) pins
Data rate   1000 Mbps
Protection Short circuit, overvoltage, overcurrent

Physical specifications

Input jack IEC320 C6
Output jack RJ-45
Data jack RJ-45
Dimensions 123 x 60 x 39 mm
Weight 190 g
Operating temperature -10 to +50 C
UTP/FTP cable length     100 m total (from switch to the device
